Description

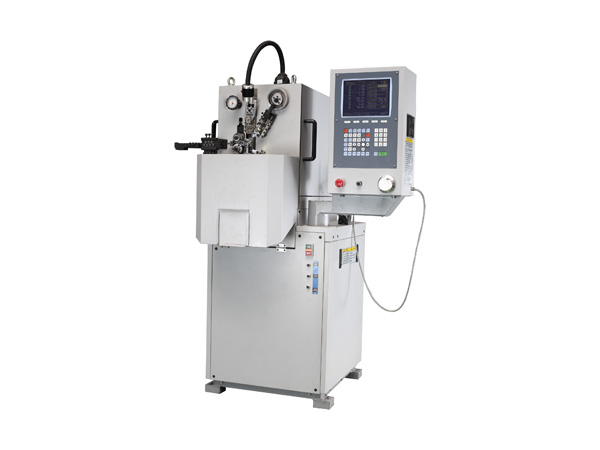

KCT-808 8 Axis CNC High-speed spring coiling machine, referred to as the 8 axis 08-type compression spring machine, is my company in 2013 successfully developed and launched a new eight axis computer spring machine, processing line diameter is φ0.15-1.0mm, suitable for spring products processing various precision pressure spring and wire forming, such as compression spring pyramid, spring, spring, spring, nozzle battery spring, electronic keyboard springs, toys spring, spring magazine, simple torsion spring and a tension spring.
Parameters
| 機 型 | Model | KCT-808 |
| 軸 數(shù) | Axis Count | 8 軸 |
| 加工線徑 | Wire Size Range | φ0.15～φ1.0mm |
| 最大彈簧外徑 | Max Outside Diameter | φ20mm |
| 最大彈簧螺距 | Max Pitch Of Spring | 30mm |
| 最大送線速度 | Max Feeding Speed | 300m/min |
| 旋繞比 | Spring Index | 3 |
| 送線輪組數(shù) | Wire Feeding Wheel Count | 1 pairs(組) |
| 送線伺服電機 | Feeding Servo Motor | 1.8kw |
| 凸輪伺服電機 | Cam Servo Motor | 0.4kw*2 |
| 切刀伺服電機 | Cutter Servo Motor | 0.75kw*2 |
| 螺距伺服電機 | Pitch Servo Motor | 0.75kw |
| 芯軸上下移動電機 | Mandrel Moving Up-down Servo Motor | 0.75kw |
| 退芯伺服電機 | Mandrel Return Servo Motor | 0.4kw |
| 機器尺寸 | Dimension(LxWxH) | 640x702x1531mm |
| 機器重量 | Weight | 400kg |
| 電 源 | Power AC | 3-380VAC 50HZ |
Our company's KCT-808 8 Axis CNC High-speed coiling machine control system used in Taiwan, reference Japan Yaskawa servo motor and high precision bearings, the standard model has 8 axes, each axis can operate independently or with synchronous operation, forming speed, stable performance and high precision the characteristics of. In addition, our design team in terms of innovation and improvement of the spring machine made a significant reform, realize the man-machine dialogue, with a minute spring forming, the speed, accuracy and performance conditions, and strive to minimize the noise, the pursuit of a more simple model operation; at the same time, the model can realize the straight cut, cut cut and put different angles such as cutting function.
